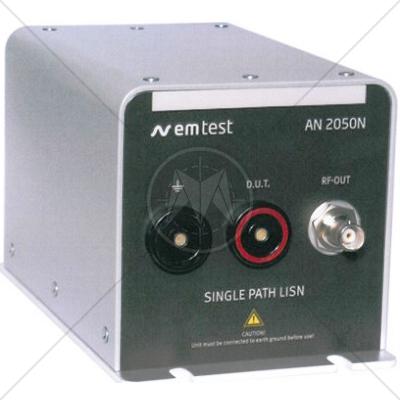

EM TEST AN 2050N Artificial Network Emission Test in Battery System

Description

The EM TEST single-line Artificial Networks, type AN 2050N series, are used for the simulation of the impedance of the wiring harness particularly for testing the interference voltage in HF-VHF-area in the battery supply system (e.g. in the automotive, aerospace and military area).

Features

  • Artificial Network as per ISO 7637 or CISPR 25/ ISO 11452-4
  • Frequency range: 100kHz - 108MHz
  • DC voltage max. 400V
  • AC voltage max. 250V (up to 1kHz)
  • Current max. 50A AC/DC cont.
  • Insertion loss < 3dB
  • Compact design

Specifications

AN 2050N SERIES

MODEL OVERVIEW

AN 2050N

Artificial Network as per

ISO 7637-2:2011 and

ISO 7637-1:1990

AN 2050N1

Artificial Network as per

CISPR 25 (with 1uF) and ISO 11452-4

TECHNICAL DATA

Frequency range

0.1 to 108MHz

Operation voltage

400V DC / 250V AC (up to 1kHz)

Operation current

50A continuous

Impedance

50ohm // 5uH +/-10% (AN 2050N)

50ohm // 5uH + 1uF (AN 2050N1)

Insertion loss

< 3dB DUT to receiver output

Inductance

5uH +/-10% (air-core coil)

Coupling capacitor

0.1uF

MEASUREMENT

Power supply/DUT connection

High-current connector up to 100A

4mm safety lab connector up to 32A

Test output

BNC-connections

GENERAL DATA

Dimensions

180 x 105 x 104mm (L x W x H)

(without connecting socket)

Weight

approx. 1kg

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
