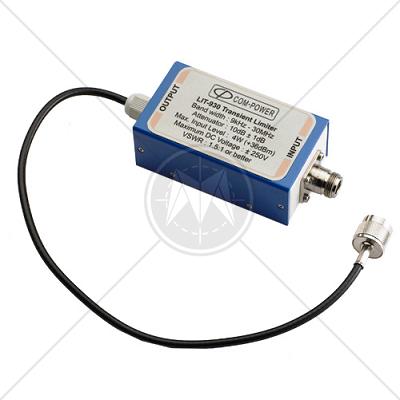

Com-Power LIT-930 Transient Limiter 9 kHz – 30 MHz

Description

Transient limiter LIT-153 and LIT-930 protects a spectrum analyzer input from high-level transients from the line impedance stabilization networks during EMC conducted emissions testing.

It has a combined frequency range of 9 kHz -30 MHz. The built in high pass filter helps reduce 50/60 Hz line feed through.

Features

  • Frequency Range - 9 kHz - 30 MHz
  • For conducted emissions testing with LISN
  • Protects spectrum analyzer input

Specifications

Frequency range

150 kHz - 30 MHz

Insertion loss

10 dB +1.5 / -0.5 dB*

Max. Input level

4 Watts CW

 (+36 dBm average)**



DC-voltage

+/- 50 V DC

VSWR

1.5:1 better

Connectors

N type (input and output)

Dimensions

L 4.3” (100 mm) W 2.0” (50 mm) H 1.5” (35 mm)

Note:

* This is inband attenuation level with maximum 120 dBμV input.

** This is the maximum inband input level that will not damage the unit.

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
