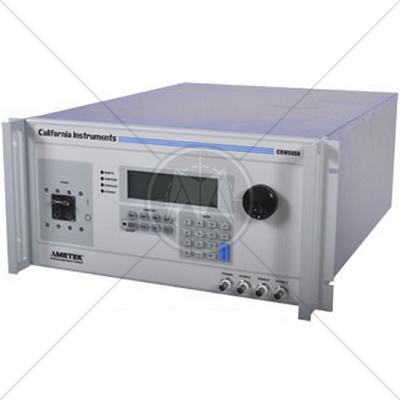

California Instruments CSW5550 Programmable AC Power Source 5.5kVA

Description

The CSW Series represents a new generation of AC/DC power sources that address the increasing demands on test equipment to perform additional functions at a lower cost. By combining a flexible AC/DC power source with a high performance power analyzer, the Compact CSW Series is capable of handling complex applications that have traditionally required multiple systems. The sleek integrated approach of the CSW avoids cable clutter that is commonly found in test systems. All connections are made internally and the need for digital multimeters, power harmonics analyzers, and current shunts or clamps is eliminated.

Since many components in the CSW are shared between the AC/DC source and the power analyzer, the total cost of the integrated system is less than the typical cost of a multiple unit system.

Features

  • Combination AC and DC Power Source
  • 40-5,000Hz Output Frequencies
  • Arbitrary and Harmonic Waveform Generation
  • Built-In Digital Power Analyzer
  • Scope Capture Capability
  • Power Programming Software
  • Constant Power Mode
  • Multi-Box Option

California Instruments CSW5550 Applications

  • Avionics
  • Telecommunications
  • Commercial Electronics
  • Testing for real world power conditions using different waveforms on all 3 phases (including DC)
  • Load susceptibility testing with sequence or event programming and multiple voltage harmonics
  • Power line disturbance simulation testing
  • MIL-STD-704, DO-160, B747 and ABD100 avionics testing
  • Power supply testing for AC-DC, DC-DC converters and UPS's
  • Transients on 12 & 24 VDC for automotive applications

Specifications

Input

Voltage Ranges

Factory configured 187 to 264 Vrms, 3ø L-L (3 wire), or 342 to 457 Vrms, 3ø L-L (4 wire). A chassis ground is also required.

Power Factor

PFC Input, 0.99PF

Frequency Range

47 to 440 Hz

Efficiency

70% min, at full load

Ride Through

70% min, at full load

Output

Power

5550 VA: 1ø or 3ø (systems up to 33,000 VA)

AC or DC Output Voltage

0 to156 Vrms L-N, low range; 0 to 312 Vrms L-N, high range

Current Per Phase

13/16A to 135V in 156V range; 6.5/13A to 270V in 312V range per 1750/1850 VA module.
Note: Higher currents may be achieved in 10.5-21 kVA systems.

Power Factor of Load

0 lagging to 0 leading (0-unity)

Crest Factor

3.25:1 (peak output current to rms output current)

Frequency Range

Specifications apply DC, 40Hz to 5kHz. For output frequencies greater than 1 kHz, the max slew rate allowed is 1 kHz per second.

Max Total Harmonic Distortion

(Full Linear Load or No Load): 0.25% max, 40 to 100 Hz; 0.5% max to 500 Hz; and 1% max to 1 kHz plus 1%/kHz to 5 kHz

AC Noise Level

>60 dB rms below full output voltage

Amplitude Stability
With Remote Sense

±0.1% of full scale over 24 hours at constant line, load and temperature

Line Regulation

(DC, or 40 Hz to 5 kHz): ±0.015% of full scale for a ±10% input line change

Load Regulation

±0.025% of full scale voltage for a full resistive load to no load; above 1 kHz, add ±0%/kHz

Voltage Accuracy

±0.1% of range. Above 1 kHz, add 0.2%/kHz. Add ±0.1% of full scale for "AC PLUS DC" mode. Valid for 5 to 156 Vrms and 10 to 312 Vrms at 25°C

Voltage Resolution

1mV (0.1V) Full Scale

Frequency Accuracy

±0.01% at 25°C ±0.001%/°C

Frequency Resolution

40 Hz to 81.91 Hz (0.01 Hz)
81.90 Hz to 819 Hz (0.01 Hz)
820 Hz to 5000 Hz (1 Hz)

Phase Accuracy,
Phase-to-Phase Balanced Linear Resistive Load

±1% of Programmed value

Phase Angle Resolution

0.1°

Remote Output Voltage Sense

5 Vrms total lead drop, max

Common

Standard Features

• 1ø to 3ø programmable
• BNC outputs for scope viewing of waveforms (1 MΩLoad Drive)

Interface

IEEE-488.2 interface, RS232, USB, Optional LAN

Protocol

SCPI protocol

WaveForm trigger output

(1 MΩLoad Drive)

Sync OUT

User programmed for: Cycle start, all cycles. Segment start, all or selected segments. For loads ≥2 kΩ: V out ≤1V low state; V out ≥2.4V high state

Clock/lock

Clock - pulses at programmed frequency. For loads ≥2 kΩV out: ≤1V low state; V out ≥2.4V high state Lock - locks output to input 'TTL' frequency; signal needs to supply pull down current of 15 mA with voltage drop of ≤0.6V; no pull up needed

External Amplitude Modulation

0 to 5 Vrms provides 0 to ≥20% output amplitude modulation

External Drive

Normal amplifier, 0 to 5 Vrms (DC to 5 kHz) or ±5 VDC input for zero to full voltage output

External Gain Control

0 to ±7.07 VDC provides zero to full output

External Input Impedance

≥30 kΩ

Environmental

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Cooling

Air is drawn in from the top, bottom, and sides and exhausted through the rear

Humidity (Non-condensing)

0 to 85% at 25°C (77°F); derate to 50% at 40°C (104°F)

Altitude

Operating 10,000 ft, non operating 40,000 ft

Physical

Dimensions

Width: 19" (483 mm)
Height: 8.75" (222 mm)
Depth: 23.5" (597 mm)

Weight

CSW 5550 - 127 lbs (57.5 kg)

Shipping Weight - US

CSW - 200 lbs (91 kg)

Note: Multi Chassis systems, dimension and weight are approximately x2, x3 and x4 CSW Specifications

Measurements - Standard (AC Measurements)

Parameter

Frequency

Phase

Voltage (AC rms)

Current (AC rms)

Range

40-81.91 Hz
82.0-819.1 Hz
> 819 Hz

40-100 Hz
100-1000 Hz

0-300 V

0-50 A

Accuracy* (±)
1 ø mode (-1)

0.1% + 1 digit

0.5°

0.5% + 250 mV

0.1% + 150 mA

Accuracy* (±)
3 ø mode (-3)

.01 Hz / 0.1 Hz / 1 Hz

0.5% + 250 mV

0.1% + 50 mA

Resolution*

.01 Hz / 0.1 Hz / 1 Hz

0.1° / 1°

10 mV

1 mA

Parameter

Real Power

Apparent Power

Power Factor

Range

0-6 kW

0-6 kVA

0.00-1.00

Accuracy* (±) 1 ø mode (-1)

0.15% + 9 W

0.15% + 9 VA

0.03

Accuracy* (±) 3 ø mode (-3)

0.15% + 3 W

0.15% + 3 VA

0.01

Resolution*

1 W

1 VA

0.01

* Accuracy specifications are in % of reading and apply above 100 counts. For multi-chassis configurations, current, power range and accuracy specifications are times three. Power factor accuracy applies for PF > 0.5 and VA > 50% of max. Frequency measurement specification valid for output > 30 Vrms.

Harmonic Measurements

Parameter

Range

Accuracy ( ± )

Resolution

Frequency fundamental

16.00 - 1000 Hz

2 counts

0.01 Hz to 1 Hz

Frequency harmonics

32.00 Hz - 16 kHz

2º typ.

0.5º

Voltage

Fundamental

0.25V

0.01V

Harmonic 2 - 50

0.25V + 0.1% + 0.1%/kHz

0.01V

Current

Fundamental

0.05A

0.01A

Harmonic 2 - 50

0.05A + 0.1% + 0.1%/kHz

0.01A

Harmonics frequency range in three-phase mode is 32 Hz - 16 kHz. Accuracy specifications are multiplied by the number of power sources in multi-source systems with the 3-phase (3Ø) or the number of sources times 3 in the 1-phase (1Ø) mode. Measurement bandwidth is limited to 16 Khz.

Model

CSW5550

CSW11100

CSW16650

CSW22200

Multiplier 3Ø/1 Ø

1/3

2/6

3/9

4/12

Model

CSW17750

CSW33300

CSW38850

CSW44400

Multiplier 3Ø/1 Ø

5/15

6/18

7/21

8/24

Protection And Safety

Overvoltage Shutdown

Programmable for 15V to 255V peak, 156V range; 30V to 510V peak, 312V range

Programmable Current Limit Shutdown

Settable to 0.01 ARMS Resolution

Programmable Current Limit
with Timed Shutdown

Settable to 1% of range: the timeout is settable from 100 ms to 10s.

Over temperature Shutdown

Automatic, not programmable

Regulatory Compliance

• EN 61010
• EN 55011
• UL 3111
• EN 50082-2
• EN 61000-4-3, EN 61000-4-4
• FCC Part 15, Class A
• CE Mark

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
