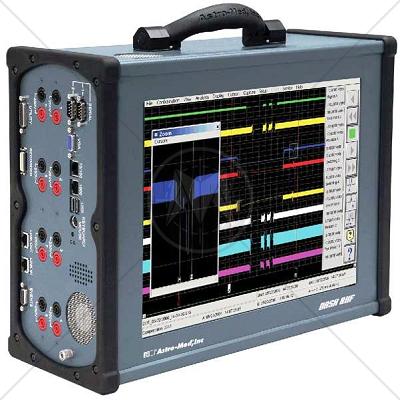

Color Display
|
|
Type
|
Active matrix color LCD (TFT)
|
|
Viewing Area
|
15.0 inch (38.1 cm) (diagonal)
|
|
Resolution
|
1024 x 768
|
|
Touch
|
Full screen, resistive
|
|
A/D Modules
|
|
Maximum Waveforms
|
8
|
|
Event Inputs
|
8
|
|
User Engineering Units
|
yes
|
|
Calibration
|
Semi-automated to external reference
|
|
Pre and Post-capture Filter
|
Advanced low pass, high pass, band pass and bandstop filtering
|
|
Isolated Input Module
|
|
Connector
|
Guarded banana jack
|
|
Bandwidth
|
200 kHz 4 pole Bessel
|
|
Max Rated Input
|
± 250 Vrms or DC
|
|
Max Transient Input
|
± 800 V
|
|
Isolation
|
250 Vrms, channel to channel, channel to chassis
|
|
Specified Ranges
|
100 mVFS to 800 VFS
(0 V offset for 800 VFS range)
|
|
Attenuator Ranges
|
1, 10, 50, 200 and 400 V
|
|
Accuracy (25°C)
|
± 0.07% of attenuator
|
|
Intrinsic Noise (pk-pk)
|
<0.2% of attenuator + 0.05% of span
|
|
Min Input Impedance
|
1 Megohm
|
|
Frequency Counter
|
Yes, on channels 1 & 5
|
|
Frequency Accuracy
|
± 0.005% of measurement
|
|
Recording
|
|
Operational Modes
|
Scope, Review, Realtime (strip-chart)
|
|
Recording Method
|
Internal ATA disk drive, removable
|
|
Maximum Sample Rate
|
2,000,000 samples/second per channel
|
|
Minimum Sample Rate
|
100 samples/second per channel
|
|
Total Capacity
|
Over 100 billion samples
|
|
Maximum Record
|
Up to the drive capacity (250 GByte)
|
|
Data Stored
|
Raw (unfiltered) data saved to the drive
|
|
Time Stamp
|
Time and Date automatically saved with data
|
|
Header
|
Information on units, range, sample rates, etc., saved with data
|
|
Data Filtering
|
Post capture filtering changes can be made
|
|
Events
|
Stored with data
|
|
Trigger Point
|
Amount of pre- and post-trigger data is user adjustable
(0-100%)
|
|
Auto Re-Arm
|
Automatic stacking of captures
|
|
Interface
|
|
Ethernet
|
10/100/1000BaseT
|
|
VGA
|
For displaying data on external monitor
|
|
Link Ports
|
For synchronizing data capture for multiple systems
|
|
USB 2.0
|
For connecting external hard drives, Flash Drives, etc.
|
|
Power
|
|
Input Voltage Range
|
100 to 250 VAC
|
|
Frequency Range
|
47 Hz to 63 Hz
|
|
Power Factor
|
0.99
|
|
Physical
|
|
Enclosure
|
Aluminum, with armored endcaps
|
|
Dimensions
|
12.1" H x 16.0" W x 6.6" D (30.8 cm x 40.64
cm x 16.84 cm) (not including handle)
|
|
Weight
|
22.5 lbs. (10.21 kg)
|
|
Environmental
|
|
Operating Temp
|
5 to 40°C (40 to 105°F)
|
|
Operating Humidity
|
10% to 90% non condensing
|
|
Compliance
|
|
Safety
|
EN 61010-1:2001, UL 61010A-1, CSA C22.2 No. 1010.1-92
|
|
EMC
|
FCC Part 15, Subpart B, Class A, EN 61326
|
|
Power Harmonics
|
IEC1000-3-2
|
»
