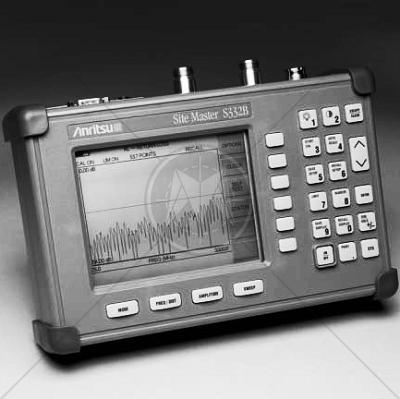

Anritsu S332B Cable & Antenna/Spectrum Analyzer 25 MHz - 3.3 GHz

Description

The S332B, with frequency coverage of 25 MHz to 3300 MHz, is ideally suited for users who work in VHF, broadcasting, paging, cellular, PCS/GSM and ISM and WLL frequency bands. Both S331B and S332B can replace the S300A and the S331A Site Master models. The newly improved user interface, large VGA display, real time clock, alphanumeric trace naming, field replaceable battery and up to 517 data points and 200 trace storage make these two Site Master models ideally suited for any experience level user in commissioning and maintenance of today's wireless systems infrastructures.

The S332B performs precision return loss/SWR, cable loss and distance-to-fault measurements in the presence of RF interference. An optional power monitoring is available to make power measurement quickly and easily.

The S332B adds spectrum analysis capability to the standard cable and antenna analyzer, S331B. S332B spectrum analysis ranges from 100 kHz to 3 GHz. Technicians and field engineers can easily identify and solve RF system problems such as coverage, interference and other path related signal problems.

Features

  • Synthesizer based Spectrum Analysis
  • Accurate Test of Antenna Systems and Active/Passive Components
  • Built-in Distance-To-Fault
  • Immunity to Live Site RF Interference
  • Extended memory capacity to 200 memory locations
  • Large VGA Display (640X480)
  • Display Resolution Settings can be adjusted to 130, 259 and 517 data points
  • Instrument calibration is valid in all data point setting
  • 10 user configurations include calibrations
  • 24 customized downloadable cable parameters
  • Math Functions: Trace - Memory, Trace + Memory
  • Reverse, over-voltage and under-voltage protection
  • Wattmeter Option

Specifications

Frequency Range

25 MHz to 3300 MHz

Spectrum Analysis Range

100 kHz to 3 GHz

Frequency Accuracy (RF Source Mode)

75 parts per million @ 25°C

Resolution

100 kHz

Return Loss Range

 0.00 to 54.00 dB

Return Loss Resolution

0.01 dB

SWR Range

1.00 to 65.00

SWR Resolution

0.01

Sweep Rate ms/point

40

Wattmeter Power Monitor

Range

80.0 to +80 dBm or 10.0 pW to 100.0 kW

Offset Range

0 to +60.0 dB

Resolution

0.1 dB or 0.1 x W

Test Port Type

N 50 Ohms

Interference Immunity

5

Calibration Instrument Configurations

10

Data Storage Reporting

Alpha Numeric

Yes

Time/Date Stamp

Yes

Numeric

Yes

Memory Locations (Max.)

200

Storage Temperature

20° C to 75° C

Operation Temperature

0° C to 50° C

Weight

4.0 lbs (1.82 kg)

Dimensions

10 x 7 x 2.4 in (25.4 x 17.8 x 6.1 cm)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
