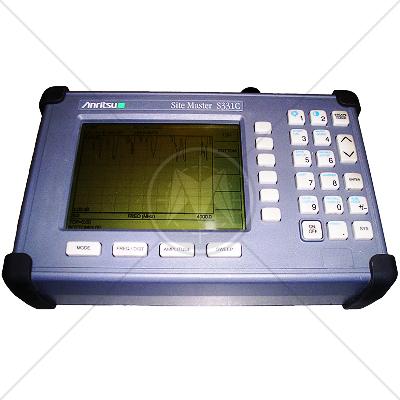

Anritsu S331C Cable & Antenna Analyzer 25 MHz to 4 GHz

• Description
• Features
• Specifications

Description

Covering the 25 MHz to 4000 MHz frequency band, the Site Master S331C is designed to accurately locate and identify RF cable feed-line and antenna system faults. This model is ideally suited for any experience level user in commissioning and maintenance of today's wireless systems infrastructures including VHF, broadcasting, paging, cellular, PCS/GSM, ISM, and WLL applications.

S331C measurement capability includes precision return loss/SWR, cable loss and distance-to-fault measurements. Patented RF interference rejection enables accurate, repeatable measurements in the presence of high RF activity. Data analysis software enables assessment of system trends, problems, and performance in addition to professional report generation. An optional power monitor is available to make power measurement quickly and easily.

Features

• Accurate Test of Antenna Systems and Active/Passive Components
• Built-in Distance-To-Fault
• Immunity to Live Site RF Interference
• Synthesizer Accurate to 75 ppm
• Trace Storage
• Automatically date/ time stamp
• Alphanumeric labeling give distinct names
• Extended memory capacity to 200 memory locations
• Large VGA Display (640X480)
• Display Resolution Settings can be adjusted to 130, 259 and 517 data points
• Instrument calibration is valid in all data point setting
• 10 user configurations include calibrations
• Field Replaceable Battery- No tools required
• 24 customized downloadable cable parameters
• Math Functions: Trace - Memory, Trace + Memory
• Reverse, over-voltage and under-voltage protection
• Wattmeter Option
• Direct Printer Control via RS232 Serial Port
