Amplifier Research ATH7G18 Waveguide Horn Antenna 7.5 GHz - 18 GHz

• Description
• Features
• Specifications

Description

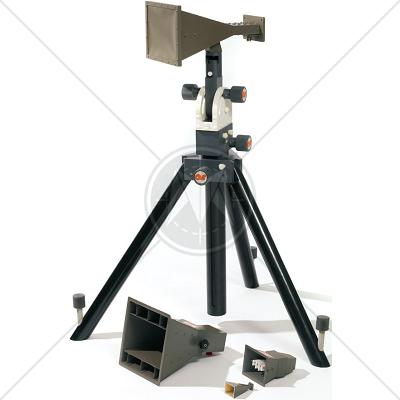

Amplifier Research ATH7G18 is a wide band, high gain, microwave horn antenna that provides field intensities of up to 250 V/m. With a minimum gain of 11.2dB over isotropic, the Model ATH7G18 supplies the constant high intensity fields necessary for RFI/EMI field testing within and beyond the confines of a shielded room. A removable gain enhancer is included to insure the required field strength when conducting 3 meter testing.

The Model ATH7G18 is extremely compact and light weight for ready mobility, yet is built tough enough for the extra demands of outdoor use and easily mounts on a rigid waveguide. Part of a family of microwave frequency antennas the Model ATH7G18 provides the 7.5-18GHz response required for many often used test specifications.

Features

• Wide beamwidth, high gain, microwave horn
• Compact and lightweight
• Supplies constant high intensity fields necessary for RFI/EMI field testing
• Tough enough for outdoor use
• Removable gain enhancer included
• Compliant to many military and commercial emissions standards
