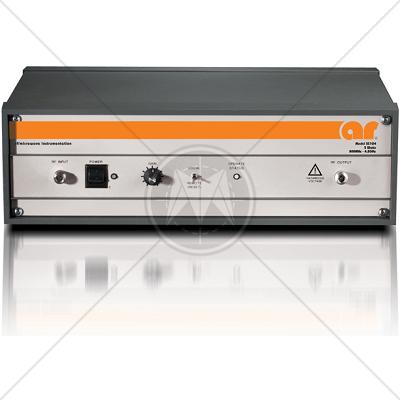

Amplifier Research 40AD1 RF Amplifier DC – 1000 MHz 40W

Description

Amplifier Research 40AD1 amplifier is a self-contained, broadband unit designed for laboratory applications where instantaneous bandwidth, high gain and moderate power output are required. Utilization of push-pull MOSFET circuitry lowers distortion, improves stability and allows operation into any load impedance without damage.

The Model 40AD1, when used with an RF sweep generator will provide a minimum of 40 watts of swept power. The Model 40AD1 is direct coupled throughout, allowing very low frequency signals to be used. Included is a front panel gain control which permits the operator to conveniently set the desired output level.

Housed in a stylish, contemporary enclosure, the Model 40AD1 provides available RF power for typical applications such as RF susceptibility testing, antenna and component testing, watt meter calibration, and use as a driver for high power amplifiers.

The Model 40AD1 amplifier uses universal input line voltage switching power supplies, thus allowing its use over a wide range of input voltages without wiring or switch position changes.

Features

  • Solid state
  • Broadband
  • Air cooled
  • High gain
  • Push-pull MOSFET circuitry
  • Mismatch tolerant
  • Modulation capability
  • RF connector – Type N

Specifications

POWER OUTPUT, CW

Typical

50 watts

Minimum

40 watts

Linear @ 1 dB compression

25 watts minimum

FLATNESS

±1.5 dB maximum

FREQUENCY RESPONSE

DC-250 MHz instantaneously

INPUT FOR RATED OUTPUT

1.0 milliwatt maximum

GAIN (at maximum setting)

45 dB minimum

GAIN ADJUSTMENT (Continuous Range)

18 dB minimum

INPUT IMPEDANCE

50 ohms, VSWR 1.5:1 maximum

OUTPUT IMPEDANCE

50 ohms, VSWR 2.0:1 maximum

MISMATCH TOLERANCE

100% of rated power without foldback. Will operate without damage or oscillation with any magnitude and phase of source and load impedance.

MODULATION CAPABILITY

Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal

NOISE FIGURE (above 1.0 MHz)

16 dB typical

HARMONIC DISTORTION

Minus 25 dBc maximum at 25 watts

THIRD ORDER INTERCEPT POINT

54 dBm typical

PRIMARY POWER

 (selected automatically)

90-135, 180-270 VAC

50/60 Hz, single phase

400 watts maximum

CONNECTORS

RF

Type N female on front panel

COOLING

Forced air (self contained fans)

SIZE (W x H x D)

50.3 x 15.5 x 30.0 cm, 19.8 x 6.1 x 11.8 in.

WEIGHT

16 kg (35 lb)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
