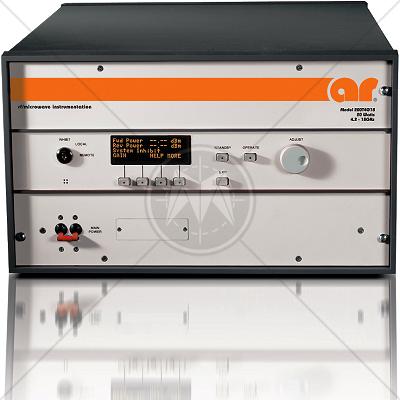

Amplifier Research 200T2G8A TWT Amplifier 2.5 GHz – 7.5 GHz 200W

• Description
• Features
• Specifications

Description

Amplifier Research 200T2G8A is a self contained, forced air cooled, broadband traveling wave tube (TWT) microwave amplifier designed for applications where instantaneous bandwidth and high gain are required. A reliable TWT provides a conservative 200 watts minimum at the amplifier output connector. Stated power specifications are at the fundamental frequency.

The amplifier's front panel digital display shows forward and reflected output plus extensive system status information accessed through a series of menus via soft keys. Status indicators include power on, warm-up, standby, operate, faults, excess reflected power warning and remote.

Standard features include a built-in IEEE-488 (GPIB) interface, 0 dBm input, VSWR protection, gain control, external video pulsing, RF output sample port, plus monitoring of TWT helix current, cathode voltage, collector voltage, heater current, heater voltage, baseplate temperature and cabinet temperature.

Modular design of the power supply and RF components allow for easy access and repair. Use of a switching mode power supply results in significant weight reduction. The external video pulsing feature reduces prime power use for pulse applications.

Housed in a stylish contemporary cabinet this unit is designed for benchtop use but can be removed from the cabinet for rack mounting.

The Model 200T2G8A provides readily available RF power for a variety of applications in Test and Measurement, (including EMC RF susceptibility testing), Industrial and University Research and Development, and Service applications.

Features

• Broadband
• Forced air cooled
• Digital display
• AM, FM or pulse modulation
• IEEE-488 (GPIB) interface
• VSWR protection
• Gain control
• 0 dBm input
• RF output Sample ports
• Auto sleep
