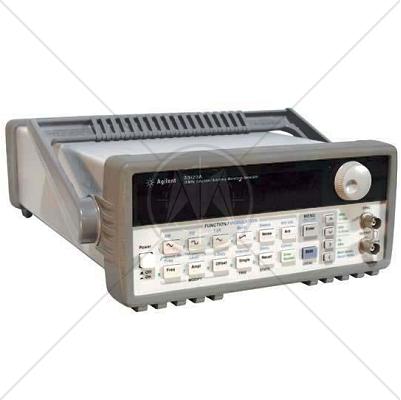

Agilent 33120A 15 MHz Arbitrary/Function Waveform Generator

• Description
• Features
• Specifications

Description

The Agilent Technologies 33120A Function/Arbitrary Waveform Generator uses direct digital-synthe- sis techniques to create a stable, accurate output signal for clean, low- distortion sine waves. It also gives you fast rise- and fall-time square wave, and linear ramp waveforms down to 100 µHz.
Custom waveform generation
Use the 33120A to generate complex custom waveforms such as a heart- beat or the output of a mechanical transducer. With 12-bit resolution, and a sampling rate of 40 MSa/s, the 33120A gives you the flexibility to create any waveform you need. It also lets you store up to four 16,000- deep waveforms in nonvolatile memory.
Easy-to-use functionality
Front-panel operation of the 33120A is straightforward and intuitive.
You can access any of ten major functions with a single key press or two, then use a simple knob to adjust fre- quency, amplitude and offset. To save time, you can enter voltage values directly in Vp-p, Vrms or dBm.
Internal AM, FM, FSK and burst modulation make it easy to modulate waveforms without the need for
a separate modulation source. Linear and log sweeps are also built in, with sweep rates selectable from 1 ms to 500 s. GPIB and RS-232 inter- faces are both standard, plus you get full programmability using SCPI commands.
