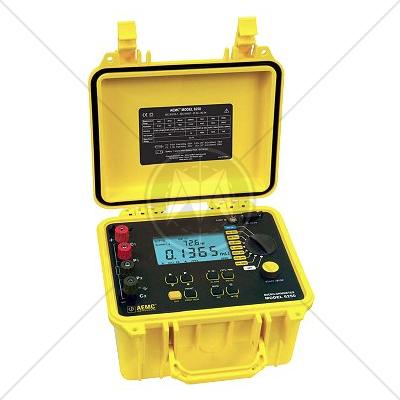

AEMC 6250 Micro-Ohmmeter 10A

Description

The AEMC 6250 Micro-Ohmmeter (10A) is a rugged, low resistance tester designed for plant maintenance, quality control in manufacturing and field use. Utilizing a four-lead Kelvin method of testing, the AEMC 6250 is one of the more accurate Micro-Ohmmeters available, with results within 0.05% accuracy.

Resistance measurements are automatically calculated and displayed, taking into account the measurement value, ambient temperature, reference temperature and metal temperature coefficient. Sample temperature can be manually entered by the operator or directly measured by the AEMC 6250 with an external RTD temperature probe.

The AEMC 6250 Micro-Ohmmeter is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front
panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer of from a PC.

The large, easy-to-read display shows the resistance measurement, ambient and reference temperatures, metal type and test method, as well as alarm conditions and memory utilization, all in real time. Previously stored test results can easily be called up for review on the display or sent directly to a printer or remote terminal.

Two programmable alarm set points are available. Each can be either active high or low and will sound an alarm when tripped, further adding to the ease of use by permitting quick Pass/Fail measurements.

External trigger operation is available through the communication port allowing the test to be conducted from a remote location.

The AEMC 6250 Micro-Ohmmeter (10A) will be a valuable asset for your bond testing, coil and contact testing as well as coatings and connector or any other low resistance testing application.
Three Test Modes:

Resistive materials (i.e. ground bonding, coatings, contact resistances) are tested with an instantaneous test. Simply press the test button � the reading is taken and the test is concluded.

Inductive materials (i.e. coils, transformers, motor windings) are tested with a continuous test. The test is started and stopped by the operator at the push of a button.

Auto test mode is designed for multiple test points on resistive and/or low inductance material. The test is started at the press of a button. As the operator moves the probe from one point to another, the test is stopped, the results are displayed and a new test is started when the test probes again make contact � no need to press the test button! Residual voltage is measured between tests to ensure proper results. This test mode continues until the operator presses the button to conclude the testing.

Features

  • Measures from 0.0001mΩ (0.1µΩ resolution) to 2500.0Ω
  • Test current selection of 1mA, 10mA, 100mA, 1A and 10A
  • RTD temperature probe to check tested sample (optional)
  • Selectable metal types
  • Automatic and manual temperature correction
  • EMF levels measured and eliminated in measurement
  • Two programmable alarm set points
  • Stores up to 1500 test results
  • Selectable Inductive and Resistance test modes
  • Automatic multiple test mode (multiple tests without pressing the button)
  • Large multi-line electroluminescent display
  • Local or remote test setup and control
  • Direct printout
  • Internal rechargeable batteries - conduct up to 5000 10A tests
  • Rugged, double insulated waterproof case
  • CE Mark

Specifications

MODEL







6250









ELECTRICAL

















Range

5.0000mΩ

25.000mΩ

250.00mΩ

2500.0mΩ

25.000Ω

250.00Ω

2500.0Ω



Accuracy

0.05% + 0.5µΩ

0.05% + 3µΩ

0.05% + 30µΩ

0.05% + 0.3mΩ

0.05% + 3mΩ

0.05% + 30mΩ

0.05% + 300mΩ



Resolution

0.1µΩ

1µΩ

10µΩ

0.1mΩ

1mΩ

10mΩ

100mΩ



Test Current

10A

10A

10A

1A

100mA

10mA

1mA



Measurement Mode

Selectable: Inductive (continuous test), Resistive (instantaneous test) or Auto (multiple tests)

Metal Type

Selectable: Copper, Aluminum or Other Metal

Alpha

Programmable from 000.00 to 99.99

Temperature Correction

Manual or Automatic with 0.1° resolution

Reference Temperature

Programmable from 32° to 130°F or -10° to 130°C

Ambient Temperature

Programmable from 32° to 130°F or -10° to 130°C

Temperature Probe

100Ω platinum RTD

Resolution

0.1°F (0.1°C)

Accuracy

±0.9°F (±0.5°C)

Alarms

Two – programmable set points from 0.0 to 2500.0Ω

Buzzer

Programmable ON/OFF and volume level

Power Source

Rechargeable 6V, 8.5 Ah NiMH batteries;

Battery Life

Approximately 5000 10A tests

Battery Charging

120/240VAC ± 20% (45 to 400Hz) line voltage

Power Management

Display powers down after 1, 5 or 10 minutes of inactivity (operator selectable)

Low Battery Indication

is displayed when battery voltage is low

Memory

Stores up to 1500 test results



Data in memory can be reviewed on the instrument display, on a PC or via direct printout

MECHANICAL



Dimensions

10.63 x 9.84 x 7.09" (270 x 250 x 180mm)

Weight

8.1 lbs (3.69kg)

Index of Protection

IP53 (case open); IP64 (case closed)

DISPLAY



Display Type

Large 50,000-count digital

Size

4 x 2.25" (102 x 57mm)

Backlight

Blue electroluminescent

Color

Safety yellow case; gray faceplate

COMMUNICATION



Interface Port

PC, remote terminal, printer or trigger test from remote contact closure

ENVIRONMENTAL



Operating Temperature

14° to 132°F (-10° to 55°C); 10 to 80% RH (non-condensing)

Storage Temperature

-40° to 140°F (-40° to 60°C)

SAFETY



Safety Rating

EN 61010-1, 60V Cat. II

Double Insulation

Yes



CE Mark

Yes

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
