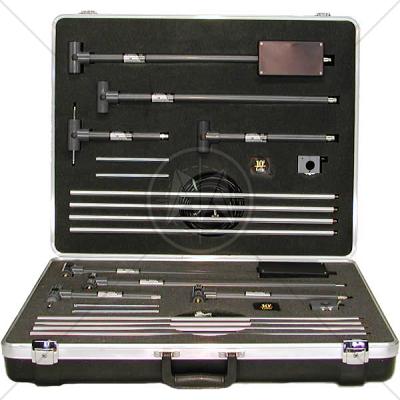

The A.H. Systems' Tuned Dipole Set provides an accurate standard for precise EMI and site attenuation measurements (per OET-55 and ANSI C63.4). Each Tuned Dipole Set is manufactured per the FCC balun design and is individually calibrated. All sets come contained in a rugged, lightweight storage case which includes four baluns, elements, cables, a tape measure and one clamp for tripod mounting.
These half-wavelength dipole antennas are an ideal solution for precise EMI measurements.
- Frequency Range of 25 MHz - 1000 MHz
- Receive and Transmit
- Individually Calibrated (3 and 10 Meter calibration included, horizontal polarization)
- FCC or VDE site attenuation
- Emissions Testing
- FCC Balun Design
- Low Loss, Low VSWR
- Two Complete 4 Balun Sets
A.H. Systems TDS-535-2 Items Included
|
Included equipment(two of each item)
|
|
FCC-1 Tuned Dipole Antenna
|
25 MHz - 70 MHz
|
|
FCC-2 Tuned Dipole Antenna
|
65 MHz - 180 MHz
|
|
FCC-3 Tuned Dipole Antenna
|
170 MHz - 340 MHz
|
|
FCC-4 Tuned Dipole Antenna
|
325 MHz - 1000 MHz
|
|
SAC-213-10 Ten Meter cable
|
|
Extension elements
|
|
Telescoping elements
|
|
Balun Mounting Clamp
|
|
Tape Measure
|
A.H. Systems TDS-535-2 Physical Dimensions
|
Case Size
|
28" x 23" x 7"
|
|
Weight
|
23 lb.'s
|
Standards
|
CISPR 11 |
|
CISPR 14 - 1 |
|
CISPR 14 - 2 |
|
CISPR 14 - 2 |
|
CISPR 16 - 1 |
|
CISPR 16 - 2 |
|
CISPR 16 - 3 |
|
CISPR 16 - 4 |
|
CISPR 22 |
|
CISPR 24 |
|
IEC/TR EN 61000 - 1 - 1 |
|
IEC/TR EN 61000 - 2 - 1 |
|
IEC/TR EN 61000 - 2 - 3 |
|
IEC EN 61000 - 3 - 2 |
|
IEC EN 61000 - 3 - 4 |
|
IEC/TC EN 61000 - 3 - 5 |
|
IEC EN 61000 - 4 - 2 |
|
IEC EN 61000 - 4 - 3 |
|
IEC EN 61000 - 4 - 4 |
|
IEC EN 61000 - 4 - 5 |
|
IEC EN 61000 - 4 - 6 |
|
IEC EN 61000 - 4 - 7 |
|
IEC EN 61000 - 4 - 8 |
|
IEC EN 61000 - 4 - 9 |
|
IEC EN 61000 - 4 - 11 |
|
EN 50 081 part 1 |
|
EN 50 081 part 2 |
|
EN 55 011 |
|
EN 55 013 |
|
EN 55 014 |
|
EN 55 015 |
|
EN 55 020 |
|
EN 55 022 |
|
EN 55 024 |
|
EN 50 082 part 1 |
|
EN 50 082 part 2 |
|
EN 50 093 |
|
FCC Part 15 |
|
MIL-STD - 461E |
|
»
