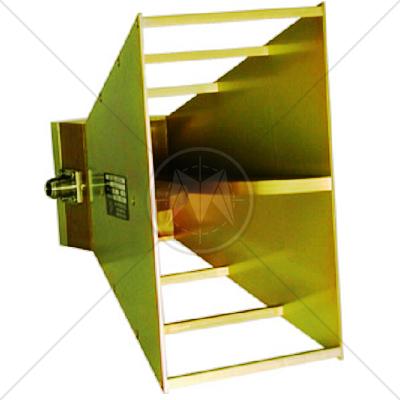

The SAS-571 Double Ridge Guide Horn Antenna is lightweight, compact and has been manufactured for maximum gain, low VSWR and broadband response. The double ridge guide horn antenna was initially designed for surveillance where a high gain broadband response was required. The original design was to have a 30-degree beamwidth, which is ideal for EMI measurements and compliance testing.
- Broad Frequency Range of 700 MHz to 18 GHz
- Linearly Polarized High Gain, Low VSWR
- Individually Calibrated
|
Frequency Range
|
700 MHz – 18 GHz
|
|
Antenna Factor
|
22 to 44 dB
|
|
Gain (dBi)
|
1.4 to 15 dBi
|
|
Maximum Continuous Power
|
300 Watts
|
|
Max Radiated Field
|
200 V/m
|
|
Pattern Type
|
directional
|
|
3dB Beamwidth (E-Field)
|
48 degrees
|
|
3dB Beamwidth (H-Field)
|
30 degrees
|
|
Impedance
|
50 Ohms
|
|
VSWR
|
1.6:1 (3.5:1 Max)
|
|
Connector
|
N-Type, female
|
|
Mounting Base
|
¼ - 20 Thread, female
|
A.H. Systems SAS – 571 Physical Dimensions
|
Length
|
11.0 in. (27.9 cm)
|
|
Width
|
5.6 in. (14.2 cm)
|
|
Height
|
9.6 in. (24.4 cm)
|
|
Weight
|
3.5 lbs. (1.59 kg)
|
|
Aperture
|
5.5" x 9.6" (13.9cm x 24.4cm)
|
Standards
|
CISPR 11 |
|
CISPR 14 - 1 |
|
CISPR 14 - 2 |
|
CISPR 14 - 2 |
|
CISPR 16 - 1 |
|
CISPR 16 - 2 |
|
CISPR 16 - 3 |
|
CISPR 16 - 4 |
|
CISPR 22 |
|
CISPR 24 |
|
IEC/TR EN 61000 - 1 - 1 |
|
IEC/TR EN 61000 - 2 - 1 |
|
IEC/TR EN 61000 - 2 - 3 |
|
IEC EN 61000 - 3 - 2 |
|
IEC EN 61000 - 3 - 4 |
|
IEC/TC EN 61000 - 3 - 5 |
|
IEC EN 61000 - 4 - 2 |
|
IEC EN 61000 - 4 - 3 |
|
IEC EN 61000 - 4 - 4 |
|
IEC EN 61000 - 4 - 5 |
|
IEC EN 61000 - 4 - 6 |
|
IEC EN 61000 - 4 - 7 |
|
IEC EN 61000 - 4 - 8 |
|
IEC EN 61000 - 4 - 9 |
|
IEC EN 61000 - 4 - 11 |
|
EN 50 081 part 1 |
|
EN 50 081 part 2 |
|
EN 55 011 |
|
EN 55 013 |
|
EN 55 014 |
|
EN 55 015 |
|
EN 55 020 |
|
EN 55 022 |
|
EN 55 024 |
|
EN 50 082 part 1 |
|
EN 50 082 part 2 |
|
EN 50 093 |
|
FCC Part 15 |
|
MIL-STD - 461E |
|
»
