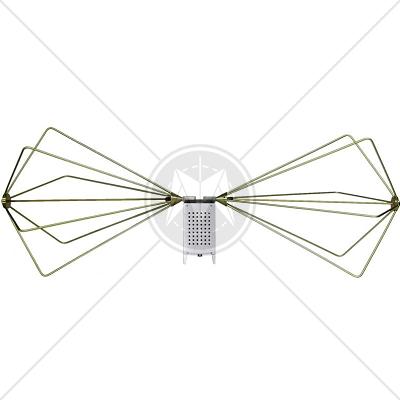

A.H. Systems SAS-543 High Power Biconical Antenna 20 MHz – 300 MHz

Description

The SAS-543 Biconical Antenna is an ideal solution for immunity testing and capable of generating high fields at lower frequencies. The Biconical antenna has a unique balun design an ideal for IEC 1000-4-3 testing or any other immunity testing. The rugged design of this Biconical antenna has an impedance transformation and matching circuit capable of handling 1000 Watts. This Biconical antenna is a versatile performer for all your compliance testing needs

Features

  • Frequency Range of 20 MHz to 300 MHz
  • Receive and Transmit
  • Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • High Input Power Capability

Specifications

Frequency Range

20 MHz - 300 MHz

Antenna Factor

7.4 to 20 dB

Gain

-14 to 2.8 dBi

Maximum Continuous Power

1000 Watts

Max Radiated Field

100 V/m

Pattern Type

Omni-directional

Impedance

50 Ohm

VSWR (Ave)

2.8:1

Connector

N-Type, female

Mounting

1/4-20 Thread, female

 A.H. Systems SAS-543 Physical Dimensions

Height

17 in. (43.2 cm)

Width

52.5 in. (133 cm)

Weight

6.0 lb.'s (2.72 kg)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
