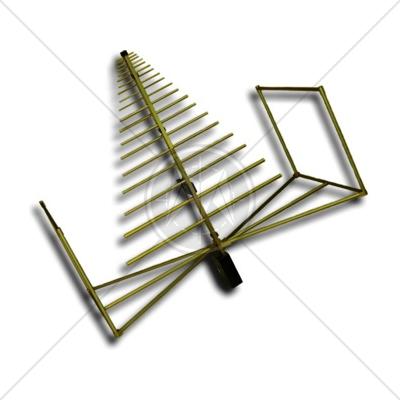

A.H. Systems SAS-521-4 Bilogical Antenna 25 MHz – 4 GHz

Description

This hybrid antenna is an inexpensive solution for broadband testing applications.

The A.H. Systems' SAS-521-4 Bilogical Antenna is one of our latest antennas, providing an inexpensive solution to wide band applications. Whether testing inside a shielded enclosure or outdoors, this antenna will display efficient performance characteristics through the frequency range of 25 MHz to 4000 MHz.

Features

  • Hybrid Log Periodic - Biconical Antenna
  • Wide Frequency Range of 25 MHz - 4000 MHz
  • Receive and Transmit
  • Individually Calibrated (1, 3 and 10 Meter calibration included, horizontal polarization)
  • FCC, MIL-STD, VDE and TEMPEST Testing
  • Rugged Construction

Specifications

Frequency Range

25 MHz - 4000 MHz

Maximum Continuous Power

1000 Watts

Pattern Type

Directional

Impedance

50 Ohm

Max Radiated Field

100 V/m

Connector

N-Type, female

Mounting Base

¼ - 20 Thread, female

 A.H. Systems SAS-521-4 Physical Dimensions

Height

22.2 in. (56.4 cm)

Width

38.5 in. (97.8 cm)

Length

38.3 in. (97.3 cm)

Weight

4.5 lb.’s (2.04 kg)

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
