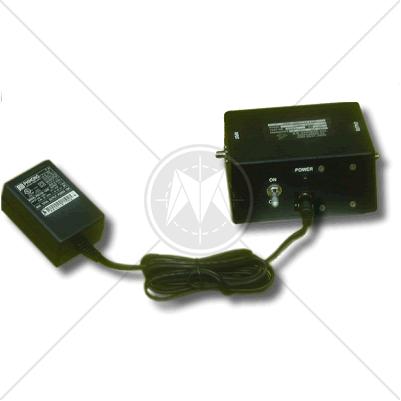

A.H. Systems PAM-0207 Preamplifier 20 MHz – 7 GHz

Description

A.H. Systems' Preamplifier line is an excellent choice with a rugged design, no hassles with soldering your own power leads and they improve overall system sensitivity by at least 20 dB. All of A.H. Systems' Preamplifiers come with a 12-volt DC regulated power source. A low voltage indicator confidently allows you to power the amplifier with your own external 12-volt DC battery. This makes it a convenient choice for field measurements.

Features

  • Frequency Range of 20 MHz to 7000 MHz
  • Low Noise, High Gain
  • Individually Calibrated (gain calibration included)
  • Low VSWR

Specifications

Frequency Range

20 MHz - 7000 MHz

Gain (typical)

30 dB

Gain (minimum)

25 dB

Noise Figure

5.0 dB

Flatness

+/- 4.2 dB

Input VSWR

less than 2.2:1

Output VSWR

less than 1.8:1

Input Power

100/220 VAC regulated P/S
output: 12 VDC  170 mA

Connectors

N(f) to N(f)

 A.H. Systems PAM-207 Physical Dimensions

Height

2.5" / 63mm

Width

3.75" / 95mm

Length

6.25" / 158mm

Weight

1.1 lbs. / 0.5 kg

Standards

CISPR
CISPR 11
CISPR 14 - 1
CISPR 14 - 2
CISPR 14 - 2
CISPR 16 - 1
CISPR 16 - 2
CISPR 16 - 3
CISPR 16 - 4
CISPR 22
CISPR 24
IEC
IEC/TR EN 61000 - 1 - 1
IEC/TR EN 61000 - 2 - 1
IEC/TR EN 61000 - 2 - 3
IEC EN 61000 - 3 - 2
IEC EN 61000 - 3 - 4
IEC/TC EN 61000 - 3 - 5
IEC EN 61000 - 4 - 2
IEC EN 61000 - 4 - 3
IEC EN 61000 - 4 - 4
IEC EN 61000 - 4 - 5
IEC EN 61000 - 4 - 6
IEC EN 61000 - 4 - 7
IEC EN 61000 - 4 - 8
IEC EN 61000 - 4 - 9
IEC EN 61000 - 4 - 11
European
EN 50 081 part 1
EN 50 081 part 2
EN 55 011
EN 55 013
EN 55 014
EN 55 015
EN 55 020
EN 55 022
EN 55 024
EN 50 082 part 1
EN 50 082 part 2
EN 50 093
American
FCC Part 15
MIL-STD - 461E
